S&T EXCETEK CNC Wire EDM EX 400
EX 400
S&T EXCETEK CNC Wire EDM EX 400
S&T EXCETEK CNC Wire EDM EX 400, with the Make in India initiative, is the finest CNC Wire Cut EDM Machine with excellent precision and reliability.
X/Y/Z & U/V Travel
400*300*220 & 80*80
Surface finish (1+3 Cut)
0.49 μRa
Maximum Cutting Speed
200mm² / min
Specification
EX 400
Unit
Values
| Max. work piece dimension | mm | W750 × D550 × H215 |
| Max. work piece weight | kg | 500 |
| Machine Dimension | mm | W2200 × D2400 × H2175 |
| Machine weight (Machine + Generator + Tank) | kg | 2600 |
Features
Operational Features
5-Axis closed-loop CNC control- Front-loading machine
- Programmable Z-axis
- Auto wire vertical alignment system
- Auto guide span (DA/DB) calibration system
- Handheld remote control with axis coordinate display
- 3-Point referencing system
- Hardened stainless steel worktable (50° HRC)
- 8-step programmable flushing control
- Real-time spark detection system
- Auto power recovery
Machine Design
- Thermal-balanced rib design using Finite Element Analysis (FEA)
- Rigid U & V axis design
- High-response AC servo motor
- Water-cooled lower arm prevents thermal expansion
- LED Type work lamp
Controller - W6
- Windows-based industrial PC
- 64-bit high-speed CPU
- 15" TFT monitor
- LAN / RS-232 / USB connectivity
- CRC data verification
- 2 GB CF card memory
- 0.0001 mm minimum command input
- Programmable dimensions ±9999.9999 mm
- Inch/Metric unit switching
User Friendly Operations
1. Watchdog Monitors During Mqaching
2. Cutting Technology Condition
3. Parameters & Maintenance information
4. Auto Measuring Cycles
|
|

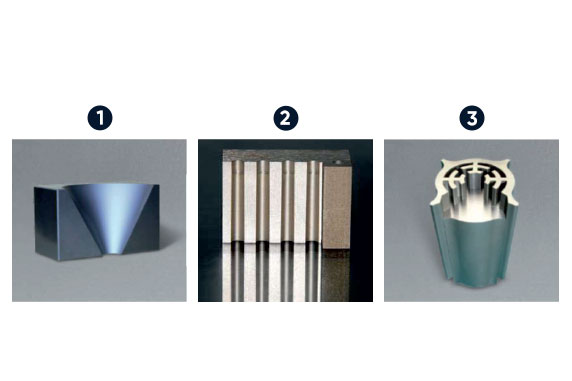

Sample - 1 |
Sample - 2 |
Sample - 3 |
|
Work Piece |
SKD-11 |
SKD-11 |
SKD-11 |
|
Wire |
0.25mm/Brass |
0.2mm/Brass |
0.2mm/Brass |
|
Taper of Angle |
30° |
0.5° |
|
|
Thickness |
50mm |
30mm |
50mm |
|
No. of Cut |
1 cut 3 skim |
1 cut 3 skim |
1 cut 2 skim |
|
Cutting Time |
5hr 30min |
40min |
Punch 3hr 40min Die 4hr 35min |
Standard Accessories
- Chiller Unit
- Ion Exchange Resin x 5 L
- Paper Filters x 2 pcs
- Diamond Guides x 2 pcs
- Upper & Lower Flushing Nozzles x 4 pcs
- Brass Wire x 1 Spool
- Clamping Tool 1 Set
- Multi-Step Pump Pressure Control
Optional Accessories
- XY Axis Linear Scale
- Clamping Beam
- Round Job Holder
- Mineral Bed Filtration System
