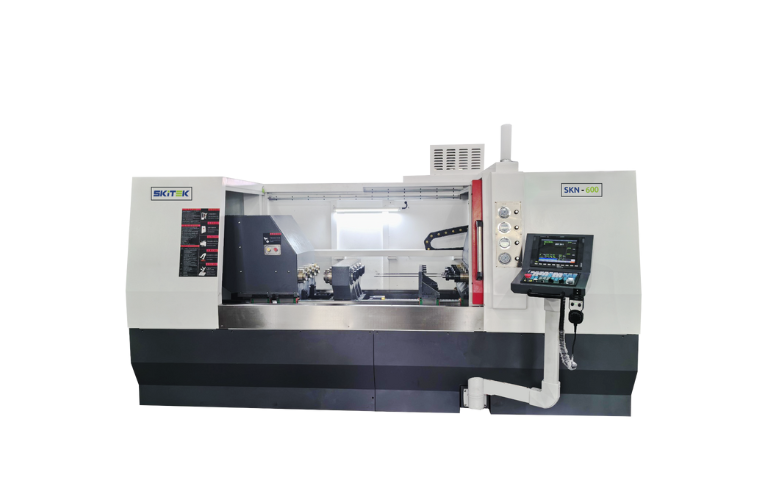

SKITEK Deep Hole Drilling Machine SKN 600
SKN 600
SKITEK Deep Hole Drilling Machine SKN 600
S&T engineers provide Single axis deep hole drilling machines. Skitek deep hole drilling machines are designed for exceptional accuracy and optimal performance.
Max depth of drilling
600 mm
Workpiece rotation speed
60 rpm
Max. Load Capacity (kg)
4000
Specification
SKN 600
Unit
Values
| Inner diameter of drilling | mm | 2.5 - 25 |
| Max depth of drilling | mm | 600 |
| Maximum diameter of workpiece | mm | 72 |
| Maximum length of workpiece | mm | 700 |
| Maximum rotating speed of principal axis | mm | 6000 |
| Spindle feed speed | mm/min | 1 - 1000 |
| Spindle travel speed | mm/min | 0 - 5000 |
| Workpiece rotation speed | rpm | 60 |
| Machine size | mm | 4000 x 2000 x 2200 |
| Load capacity of working table | kg | 4000 |
Features
Component counter rotation ensures exceptional straightness.- Ball screws and servo drives provide precise linear motion.
- Multiple tool steadies provide optimal tube support.
- A rotating cone or self-centering chuck arrangement ensures secure part clamping.
- A high-pressure coolant system with fine filtration delivers superior performance.
- Oil chilling and automatic lubrication ensure efficient operation.
- An integrated design minimizes the overall machine footprint.
