SKITEK Medium Speed CNC Wire EDM SR-500/G
SR-500/G
SKITEK Medium Speed CNC Wire EDM SR-500/G
SKITEK Medium Speed CNC Wire EDM SR-500/G are finest CNC Wire EDM Machines with excellent precision and reliability.
Travel
Travel - (X,Y)/(U,V)/Z - 400*300/80 * 80/220
Axes control
Axes control - XY axis linear motor, UV Z axis AC servo motor
Machine Dimension
Machine Dimension - 2260 x 2525 x 2100
Specification
SR-500/G
Unit
Values
| Machine dimension | ( W x L x H ) mm | 1300 x 1770 x 1880 |
| Machine weight | kg | 1700 |
| Water tank size | W x L x H (mm) | 1100 x 700 x 670 |
| Water Tank capacity | L | 200 |
Features
The handheld unit developed independently is convenient for customer to use (only servo type)- High-efficiency and low-loss environmental control system,greatly improve the efficiency, reduce power dissipation.
- Table Moving Part: X/Y axis adopts three-tier worktable struction guarantees the high cutting accuracy and make sure the table moving smoothly.

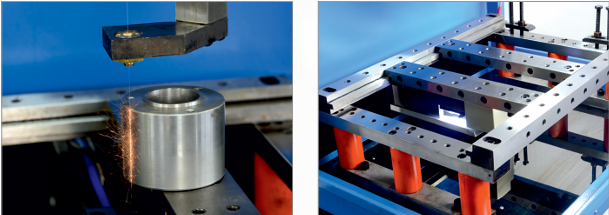

- Multifunction work-piece fixture.
- Z axis electric lifting.
- X,Y axis digital read out(DRO).
- Multiple filtration water tank.
- Excellent Software with both design and operating function,multi-cutting makes the surface finishing close to brass wed m. Controller can accept & transfer different drawing format, easy to operate, greatly improve the work efficiency.
- Intelligent database : Not necessary to input the cutting parameters manually, control system works out perfect parameters immediately after inputting job thickness, wire diameter and cutting times.The problem of different job accuracy caused by workers with different experiences wit! be solved.
- X/Y axis drived by AC servo motors,after correcting by laser interferometer,improve the displacement accuracy and speed, (only servo type)
- Wire Tension System : Adopts double direction wire tension system, keep the wire tension with same strength during the working time, which can protect the wire and reduce the wire broken possibility.
- Wire Swing system:The first company in Chinese market that adopts linear guide way,make the swing drum
- Moves smoothly without any unnecessary abrasion, a void many problems such as big abrasion, wire breaking,wire loosing etc caused by V-shape guide way.
- Central lubrication system for the whole machine.
- Taper/angle part:Well-designed high strenth taper device,ensures the displacement accuracy for moving and taper cutting
