S&T EXCETEK CNC Wire EDM V 1060
V 1060
S&T EXCETEK CNC Wire EDM V 1060
S&T Engineers supplies premium EXCETEK CNC Wire Cut EDM V 1060 Machines in India, delivering advanced Taiwanese Wire EDM technology for high-precision machining, complex profile cutting, and exceptional surface finish in demanding manufacturing applications.
X/Y/Z & U/V Travel
1000*600*350 & 160*160
Wire Diameter
Ø 0.2~0.33
Surface Finish (1+3 Cut)
0.35 Std, 0.15 (opt) μ Ra
Specification
V 1060
Unit
Values
| Max. work piece dimension (WxDxH) | mm | 1500 × 1000 × 345 |
| Max. work piece weight | kg | 3000 |
| Machine Size | mm | 4210 x 3260 x 2310 |
| Machine weight (Machine + Generator + Tank) | kg | 7300 |
Features
Operational Features
Traveling column design is ideal for loading and machining large workpieces; with optional Z-axis configuration- Two step drop door design, simplifies operation and in-process inspection, and streamlines workpiece loading and unloading.
Smart Features
- Auto Measurement System
- E-Learning
- Scrap-removing Device
- Intelligence Control
- Automation
- System Diagnosis
- Utilization
- NC File Transmission
- Maintenance
- Industrial IOT
Machine Design

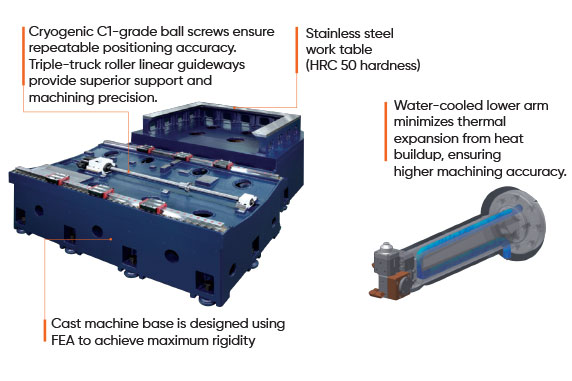

- Water cooled lower arm optimizes accuracy by minimizing thermal expansion caused by heat buildup.
- Premium grade cryogenic C1 grade ball screws ensure repeatable positioning accuracy. Roller type linear guide ways employ triple trucks to provide machining support and accuracy during both positioning and cutting.
- Stainless steel work table (HRC 50 hardness)
- Cast machine base is designed using FEA to achieve maximum rigidity.
Controller - W6
- CNC Device: Industrial PC
- CPU: Pentium 64-bit high speed CPU
- Operation Interface: 15" LCD touch-screen, Keyboard, Mouse
- Input Interface: LAN, USB driver, RS-232
- Memory Capacity: 32 GB SSD
- Minimum Command Unit: 0.0001 mm
- Maximum Programmable Dimension: ±9999.9999 mm
- Unit: Metric/Inch switchable
Annealing wire threading
- Wire Break Re-Threading: Annealing straightens the wire, enabling re-threading at the break point during machining with virtually 100% reliability, eliminating the need to return to the start hole.
- Submerged Wire Threading: Performs automatic wire threading during submerged machining without draining or refilling the work tank.
- Multi-Hole Machining: If re-threading fails, the machine automatically skips to the next hole and stores the skipped location for later completion.
|
|
Sample - 1 |
Sample - 2 |
Sample - 3 |
Sample - 4 |
|
Work Piece |
SKD-11 |
SKD-11 |
SKD-11 |
SKD-11 |
|
Wire |
0.25mm/Brass |
0.2mm/Brass |
0.2mm/Brass |
0.2mm/Brass |
|
Taper of Angle |
30° |
|
|
|
|
Start Hole |
|
|
|
0.7mm |
|
Thickness |
50mm |
Punch 50mm |
50mm |
15mm |
|
No. of Cut |
1 cut 3 skim |
1 cut 2 skim |
1 cut 2 skim |
No cone cut |
|
Cutting Time |
5hr 30min |
Punch 45min |
Punch 3hr 40min Die 4hr 35min |
48hr 35min |
|
Each Hole Cycle |
|
|
|
70 sec |
Standard Accessories
- Ion Exchange Resin x 10 L
- Paper Filters x 2 pcs
- Diamond Guides x 2 pcs
- Upper & Lower Flushing Nozzles x 2 sets
- Energizing plates x 2 pcs
- Brass Wire x 1 Spool
- Clamping Tool x 1 Set
- Vertical alignment jig x 1 set
Optional Accessories
- Clamping Beam
- Short Message Service (SMS)
- Remote monitor system
- W-Axis
- Jumbo Feeder L-50A
- Signal Tower
