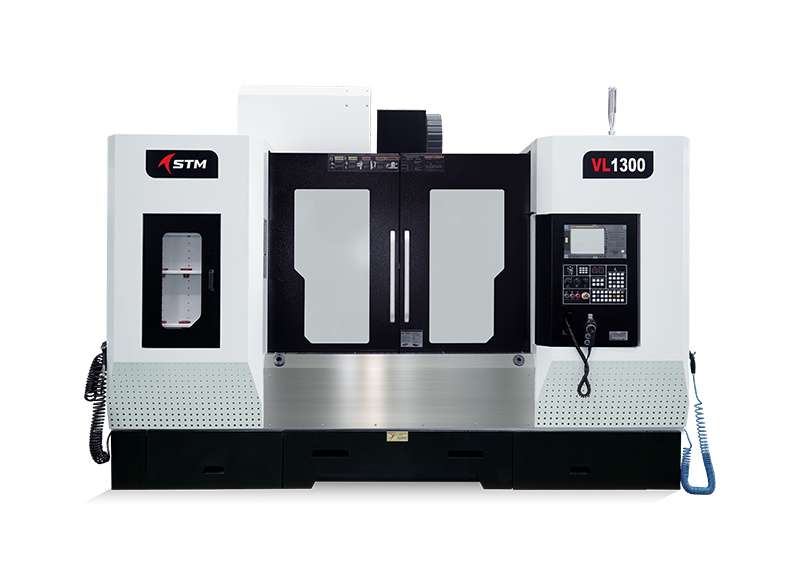

STM Vertical Machining Center VL/VD 1300
VL/VD 1300
STM Vertical Machining Center VL/VD 1300
STM Vertical machining center VL/VD 1300 for high speed and high accuracy machining. with optional half guarding option and wide door area to support larger work piece
Table(LxW)(mm)
1450x650
Travel(XxYxZ)(mm)
1300x700x700
Spindle
Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional)
Direct Drive Spindle BBT40 - 10000 RPM 12000/15000 RPM (optional)
Belt Drive Spindle BBT50 - 6000 RPM 8000 RPM(optional)
Direct Drive Spindle BBT50 - 8000 RPM 10000 RPM (optional)
Direct Drive Spindle BBT40 - 10000 RPM 12000/15000 RPM (optional)
Belt Drive Spindle BBT50 - 6000 RPM 8000 RPM(optional)
Direct Drive Spindle BBT50 - 8000 RPM 10000 RPM (optional)
Specification
VL/VD 1300
Unit
Values
| X/Y/Z Travel | mm | 1300/700/700 |
| X/Y/Z Ball Screws | mm | C3 40 |
| Table Size | mm | 1450x650 |
| Max.Table Load | Kg | 1500 |
| Machine Dimension(LxWxH) | mm | 3,950 X 2,850 X 3,095 |
| Machine Net Weight(approx.) | Kg | 8,500 |
