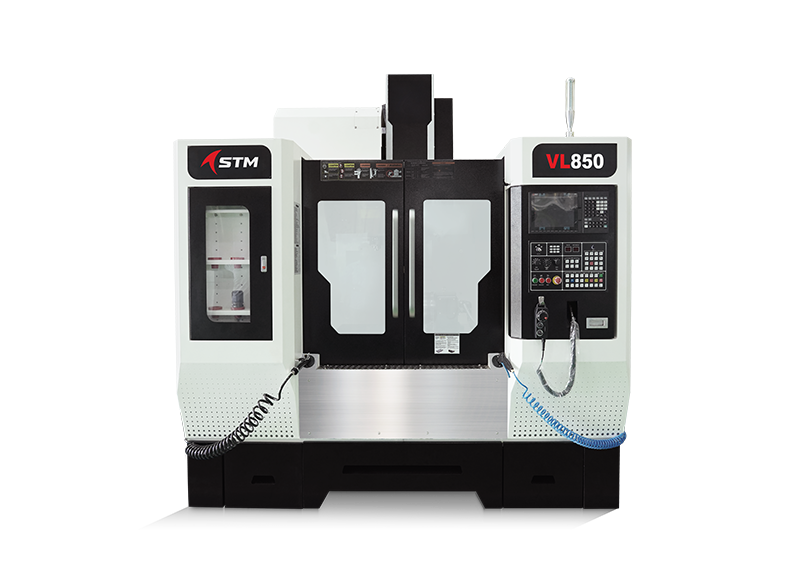

STM Vertical Machining Center VL/VD 850
STM CNC Vertical machining center VL/VD 850 for high speed and high accuracy machining.
Table(LxW)(mm)
1000x500
Travel(XxYxZ)(mm)
850x510x510
Spindle
Belt Drive Spindle BBT40 - 8000 RPM 10000/12000 RPM(optional)
Direct Drive Spindle BBT40 - 8000 RPM 10000/12000/15000 RPM (optional)
Direct Drive Spindle BBT40 - 8000 RPM 10000/12000/15000 RPM (optional)
Specification
VL/VD 850
Unit
Values
| X/Y/Z Travel | mm | 850/510/510 |
| X/Y/Z Ball Screws | mm | C3 40 |
| Table Size | mm | 1000x500 |
| Max.Table Load | Kg | 800 |
| Machine Dimension(LxWxH) | mm | 2,630 X 2,300 X 2,785 |
| Machine Net Weight(approx.) | Kg | 5,500 |
